G502DS, G501VS GLASS PASSIVATED RECTIFIERS

Jingdao

Description

Jingdao Microelectronics co.LTD GLASS PASSIVATED RECTIFIERS Reverse Voltage - 100 to 1000 V Forward Current - 5.0 A .

📥 Download Datasheet

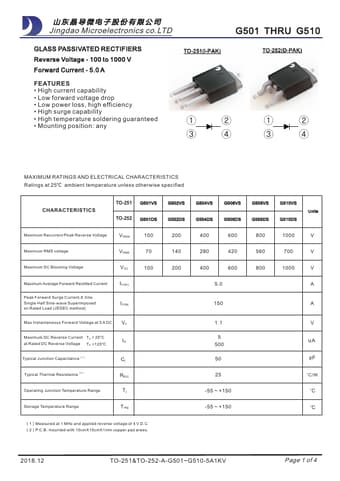

G502DS Datasheet Preview — This datasheet PDF includes multiple part numbers: G502DS, G501VS. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: G502DS, G501VS
Manufacturer: Jingdao
File Size: 262.14 KB
Datasheet: G501VS-Jingdao.pdf
Description: GLASS PASSIVATED RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: G502DS, G501VS.
Please refer to the document for exact specifications by model.

Features

* High current capability
* Low forward voltage drop
* Low power loss, high efficiency
* High surge capability
* High temperature soldering guaranteed
* Mounting position: any ① ③ G501 THRU G510 ② ①② ④ ③④ MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTI
