RS3AF - Surface Mount Fast Recovery Rectifiers

RS3AF Description

Jingdao Microelectronics Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 3 A .
1 Cathode 2 Anode 12 Top View Marking Code： RS3A-RS3M Simplified outline SMAF and symbol Absolute Maximum Ratings and Characteristics Ratings at 25 °.

RS3AF Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place
* Fast reverse recovery time
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case: SMAF
* Terminals: Solderable per MIL-STD-750, Method 2

📥 Download Datasheet

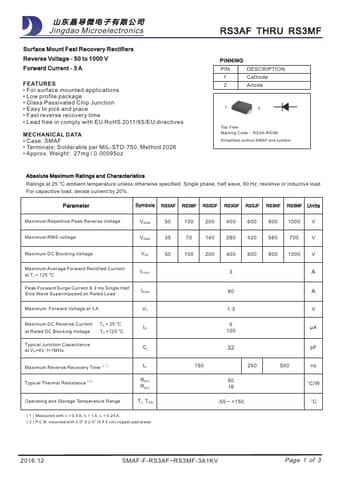

Preview of RS3AF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS3AF
Manufacturer
Jingdao Microelectronics
File Size
75.69 KB
Datasheet
RS3AF-JingdaoMicroelectronics.pdf
Description
Surface Mount Fast Recovery Rectifiers
