MM3Z3V0W - Silicon Planar Zener Diodes

Product Overview

Datasheet Details

Part number	MM3Z3V0W
Manufacturer	Jingdao Microelectronics
File Size	96.46 KB
Description	Silicon Planar Zener Diodes
Datasheet	MM3Z3V0W Datasheet
Note	This datasheet PDF includes multiple part numbers: MM3Z3V0W, MM3Z2V0W. Please refer to the document for exact specifications by model.

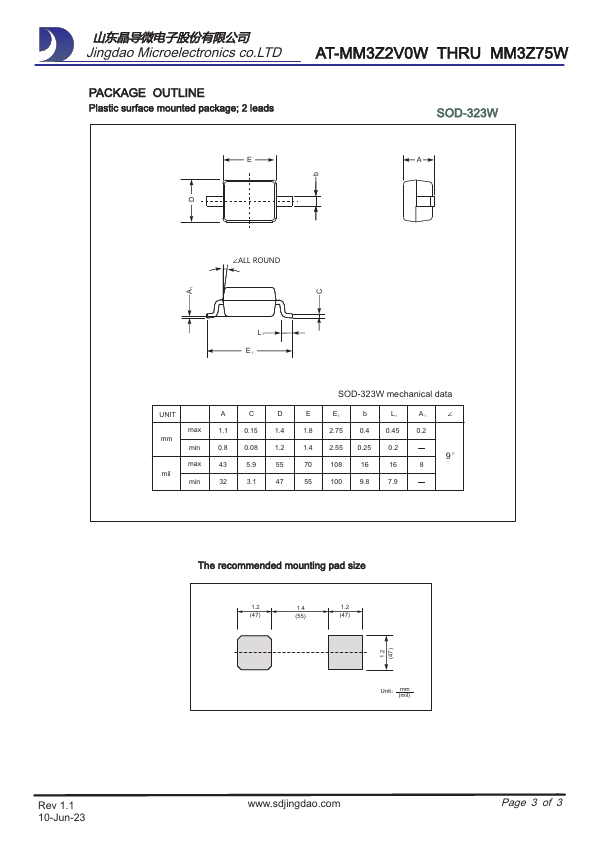

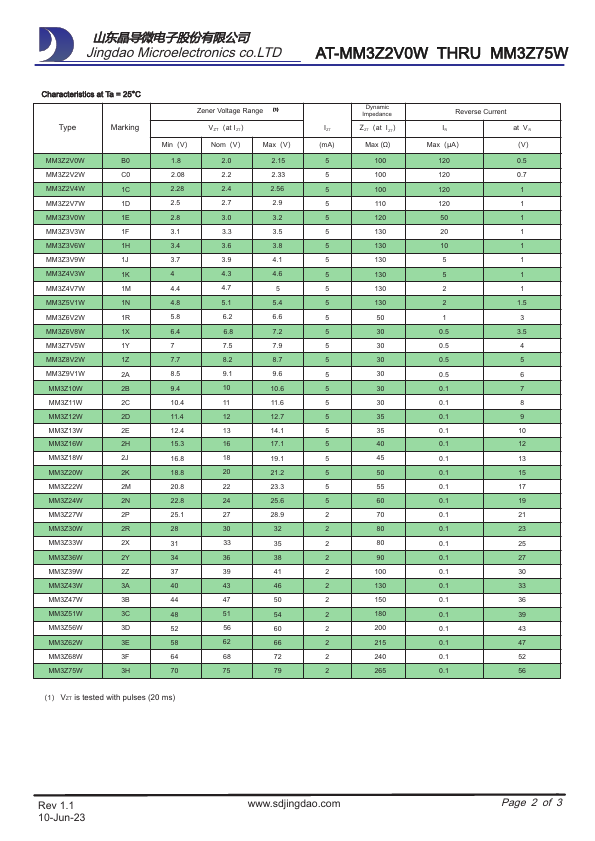

Additional preview pages of the MM3Z3V0W datasheet.

Product details

Description

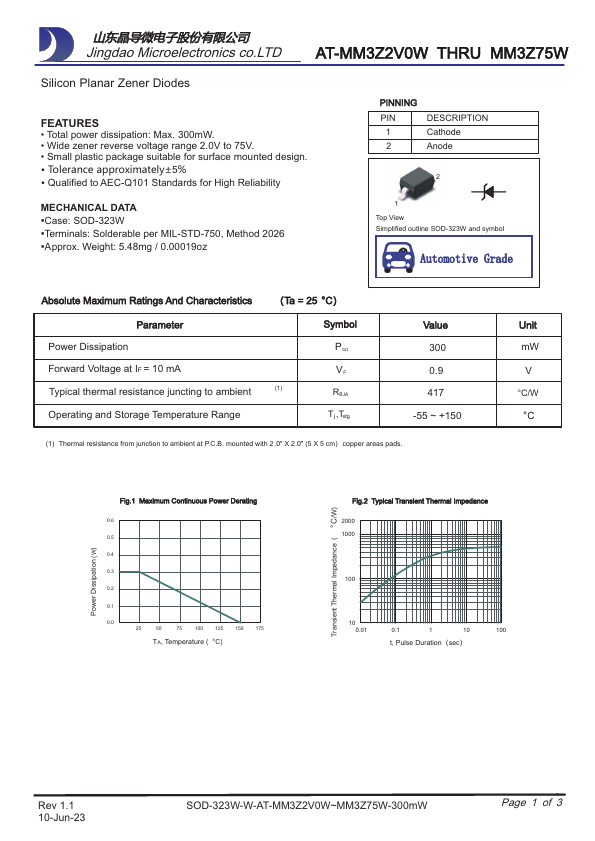

1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-323W and symbol Value Unit Absolute Maximum Ratings And Characteristics Parameter Power Dissipation Forward Voltage at IF = 10 mA Typical thermal resistance juncting to ambient Operating and Storage Temperature Range （Ta = 25 °C） Symbol P tot VF (1) RθJA T j ,Tstg Value 300 0.9 417 -55 ~ +150 (1) Thermal resistance from junction to ambient at P.C.B.mounted with 2 .0" X 2.0" (5 X 5 cm) copper areas pads.Unit mW V °C/W °C Power

Features

Total power dissipation: Max. 300mW.
Wide zener reverse voltage range 2.0V to 75V.
Small plastic package suitable for surface mounted design.
Tolerance approximately±5%.
Qualified to AEC-Q101 Standards for High Reliability.
