ES1ABF - Surface Mount Superfast Recovery Rectifier

The ES1ABF by Jingdao Microelectronics is a Surface Mount Superfast Recovery Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the ES1ABF Surface Mount Superfast Recovery Rectifier datasheet (Jingdao Microelectronics).

Datasheet Details

Part number ES1ABF
Manufacturer Jingdao Microelectronics
File Size 83.81 KB
Description Surface Mount Superfast Recovery Rectifier
Datasheet download datasheet ES1ABF-JingdaoMicroelectronics.pdf
Additional preview pages of the ES1ABF datasheet.

ES1ABF Product details

Description

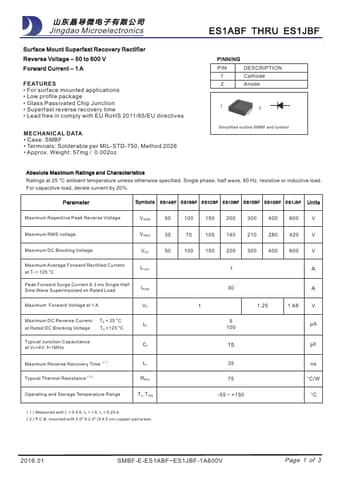

1 Cathode 2 Anode 12 Simplified outline SMBF and symbol Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60 Hz, resistive or inductive load.For capacitive load, derate current by 20%.Parameter Symbols ES1ABF ES1BBF ES1CBF ES1DBF ES1EBF ES1GBF ES1JBF Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 150 200 300 400 600 V Maximum RMS voltage VRMS 35 70 105 140 210 280 420
