1SMAF4731A - Silicon Planar Zener Diodes

Download the 1SMAF4731A datasheet PDF (1SMAF4728A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon planar zener diodes.

Description

1 Cathode 2 Anode MECHANICAL DATA Case: SMAF Terminals: Solderable per MIL-STD-750, Method 2026

Approx.

Features

  • Total power dissipation: Max. 1 W.
  • Wide zener reverse voltage range 3.3V to 330V.
  • Small plastic package suitable for surface mounted design.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMAF4728A-JingdaoMicroelectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMAF4731A
Manufacturer Jingdao Microelectronics
File Size 71.81 KB
Description Silicon Planar Zener Diodes
Datasheet download datasheet 1SMAF4731A Datasheet

📁 Similar Datasheet

  • 1SMAF4731A - SURFACE MOUNT SILICON ZENER DIODES (Sunmate)
  • 1SMAF4731A - Silicon Planar Zener Diodes (BLUE ROCKET ELECTRONICS)
  • 1SMAF4730A - SURFACE MOUNT SILICON ZENER DIODES (Sunmate)
  • 1SMAF4730A - Silicon Planar Zener Diodes (BLUE ROCKET ELECTRONICS)
  • 1SMAF4732A - SURFACE MOUNT SILICON ZENER DIODES (Sunmate)
  • 1SMAF4732A - Silicon Planar Zener Diodes (BLUE ROCKET ELECTRONICS)
  • 1SMAF4733A - SURFACE MOUNT SILICON ZENER DIODES (Sunmate)
  • 1SMAF4733A - Silicon Planar Zener Diodes (BLUE ROCKET ELECTRONICS)
  • 1SMAF4734A - SURFACE MOUNT SILICON ZENER DIODES (Sunmate)
  • 1SMAF4734A - Silicon Planar Zener Diodes (BLUE ROCKET ELECTRONICS)
Other Datasheets by Jingdao Microelectronics

Full PDF Text Transcription

Click to expand full text

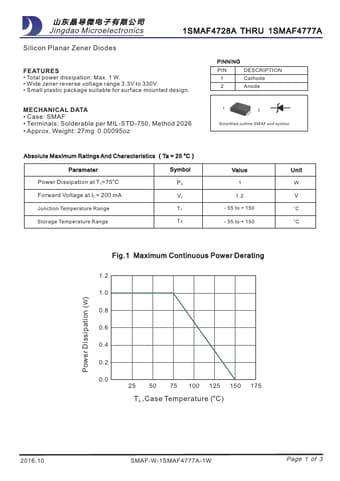

Jingdao Microelectronics 1SMAF4728A THRU 1SMAF4777A Silicon Planar Zener Diodes FEATURES • Total power dissipation: Max. 1 W. • Wide zener reverse voltage range 3.3V to 330V. • Small plastic package suitable for surface mounted design. PINNING PIN DESCRIPTION 1 Cathode 2 Anode MECHANICAL DATA • Case: SMAF • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 27mg 0.00095oz 12 Simplified outline SMAF and symbol Absolute Maximum Ratings And Characteristics （Ta = 25 °C） Parameter Power Dissipation at Tc=75°C Forward Voltage at IF = 200 mA Junction Temperature Range Symbol PD VF TJ Storage Temperature Range TS Value 1 1.2 - 55 to + 150 - 55 to + 150 Unit W V °C °C Power Dissipation (W) Fig.1 Maximum Continuous Power Derating 1.2 1.0 0.8 0.6 0.4 0.2 0.
