HBR2040HFR, HBR2040 SCHOTTKY BARRIER DIODE

Jilin Sino

Description

R SCHOTTKY BARRIER DIODE HBR2040 MAIN CHARACTERISTICS IF(AV) VRRM Tj VF(max) 20（2×10）A 40 V 175 ℃ 0.6V （@Tj=125℃） z z APPLICATIONS z High f.
of Changes 2010-02-03 200911G 201002H Added TO-220HF.

📥 Download Datasheet

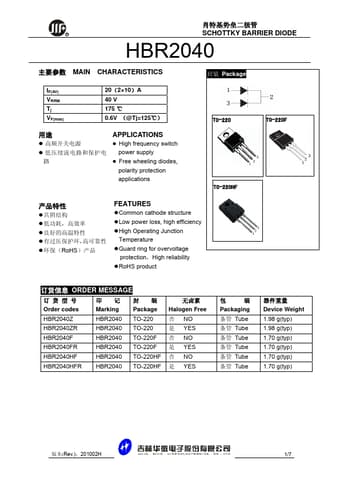

HBR2040HFR Datasheet Preview — This datasheet PDF includes multiple part numbers: HBR2040HFR, HBR2040. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HBR2040HFR, HBR2040
Manufacturer: Jilin Sino
File Size: 367.93 KB
Datasheet: HBR2040-JilinSino.pdf
Description: SCHOTTKY BARRIER DIODE
Note: This datasheet PDF includes multiple part numbers: HBR2040HFR, HBR2040.
Please refer to the document for exact specifications by model.

Features

* zCommon cathode structure zLow power loss, high efficiency zHigh Operating Junction Temperature zGuard ring for overvoltage protection，High reliability zRoHS product ORDER MESSAGE Order codes Marking Package HBR2040Z HBR2040 TO-220 HBR2040ZR HBR2040 TO-220 HBR2040F HBR2040 TO-220F HB
