HBR20300 - SCHOTTKY BARRIER DIODE

HBR20300 Description

R SCHOTTKY BARRIER DIODE HBR20300 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 20（2×10）A 300 V 175 ℃ 0.80V （@Tj=125℃） * * .

HBR20300 Features

* Common cathode structure
* Low power loss, high efficiency
* High Operating Junction Temperature
* Guard ring for overvoltage protection，High reliability
* RoHS product ORDER MESSAGE Order codes - Halogen-Tube HBR20300-C-B HBR20300-F1-B - Halogen Free-Tube HBR20300-C-BR HBR

HBR20300 Applications

* High frequency switch power supply
* Free wheeling diodes, polarity protection applications TO-220C TO-220MF-K1
* ，
* ，

📥 Download Datasheet

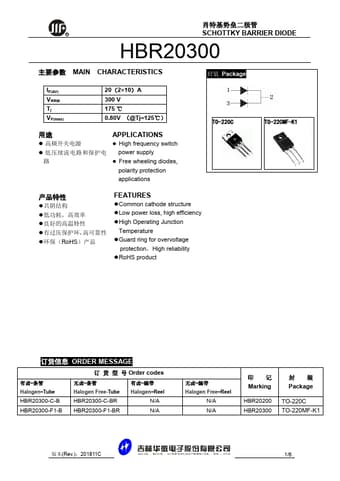

Preview of HBR20300 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HBR20300
Manufacturer
Jilin Sino
File Size
276.51 KB
Datasheet
HBR20300-JilinSino.pdf
Description
SCHOTTKY BARRIER DIODE
