HBR10100BF, HBR10100 SCHOTTKY BARRIER DIODE

HBR10100BF Description

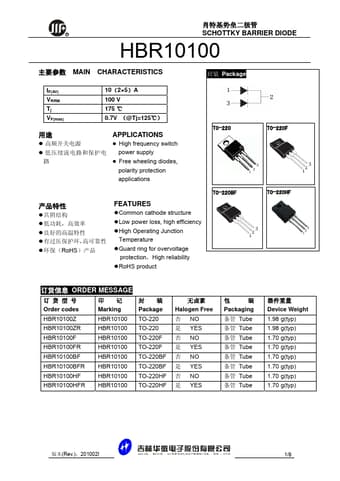

R SCHOTTKY BARRIER DIODE HBR10100 MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 10（2×5）A 100 V 175 ℃ 0.7V （@Tj=125℃） z z APPLICATIO.
of Changes 2010-02-04 200911H 201002I Added TO-220HF.

HBR10100BF Features

* zCommon cathode structure zLow power loss, high efficiency zHigh Operating Junction Temperature zGuard ring for overvoltage protection，High reliability zRoHS product TO-22O TO-22OBF TO-22OF TO-22OHF ORDER MESSAGE Order codes Marking Package HBR10100Z HBR10100 TO-220 HBR10100ZR HBR10

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HBR10100BF, HBR10100. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HBR10100BF, HBR10100
Manufacturer
Jilin Sino
File Size
558.52 KB
Datasheet
HBR10100-JilinSino.pdf
Description
SCHOTTKY BARRIER DIODE
Note
This datasheet PDF includes multiple part numbers: HBR10100BF, HBR10100.
Please refer to the document for exact specifications by model.
