AD6983D - MCU

Product Overview

Datasheet Details

Part number	AD6983D
Manufacturer	Jieli
File Size	427.32 KB
Description	MCU
Datasheet	AD6983D Datasheet
Additional preview pages of the AD6983D datasheet.

Product details

Description

Table 1-1 AD6983D Pin Description PIN I/O Drive Name Function NO.Type (mA) Other Function 1 VCOM 2 VDDIO PB8 3 PB6 4 PGND 5 SW 6 VBAT 7 LDO_IN 8 BT_AVDD 9 PB2 10 PB1 11 BT_RF 12 BT_OSCI 13 BT_OSCO PC4 14 USBDM P / DAC reference voltage P / IO Power 3.3v I/O 8 GPIO UART0RXB：Uart0 Data Input(B)； CAP4：Timer4 Capture； I/O 8/24 GPIO UART1RXA：Uart1 Data Input(A)； PWM2：Timer2 PWM Output； ADC9：ADC Input Channel 9； Touch7：Touch Input Channel 7; P / DCDC Ground P / DCDC output D

Features

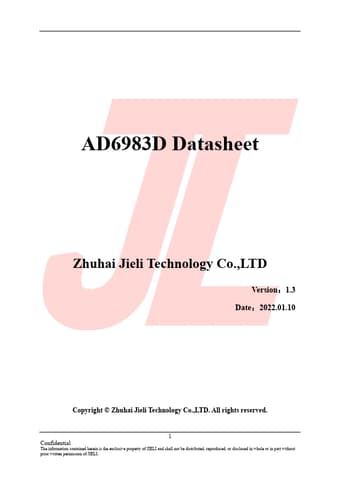

AD6983D Datasheet CPU 32-bit DSP supports hardware Float Point Unit(FPU) Up to 160MHz programmable processor 64Vectored interrupts 4 Levels interrupt priority DSP Audio Processing SBC, AAC Audio decodes supported for BT audio mSBC voice codec supported for BT phone Supports MP2, MP3, WMA, APE, FLAC, AAC, MP4, M4A, WAV, AIF, AIFC audio decoding Packet Loss Concealment (PLC) for voice processing Acoustic echo cancellation/suppression (AEC,AES) Single MIC (Analog/Digital) Environmental Noise Canc.
