Q-25.0-SMU4-18-30 - (SMU4 Series) Surface Mount Quartz Crystal

Jauch Quartz GmbH

Datasheet Details

Part number	Q-25.0-SMU4-18-30
Manufacturer	Jauch Quartz GmbH
File Size	122.11 KB
Description	(SMU4 Series) Surface Mount Quartz Crystal
Datasheet	Q-25.0-SMU4-18-30_JauchQuartzGmbH.pdf

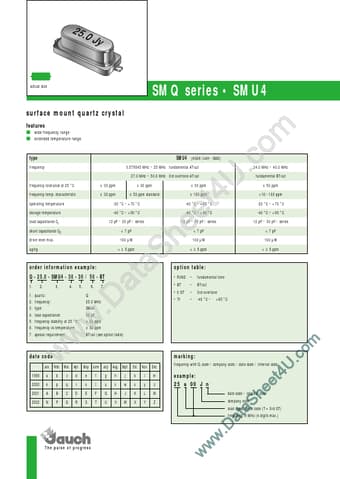

s wide frequency range s extended temperature range type frequency SMU4 (HC49/U4H - SMD) 3.579545 MHz ~ 25 MHz fundamental AT-cut 27.0 MHz ~ 50.0 MHz 3rd overtone AT-cut frequency tolerance at 25 °C frequency temp. characteristic operating temperature storage temperature load capacitance CL shunt capacitance CO drive level max. aging ± 30 ppm ± 30 ppm ± 30 ppm ± 50 ppm standard ± 30 ppm ± 100 ppm -20 °C ~ +70 °C -40 °C ~ +90 °C 12 pF ~ 30 pF / series < 7 pF 100 µ W < ± 5 ppm -40 °C ~ +8.
