20FLZ-SM2-TB CONNECTOR

FLZ CONNECTOR 0.5mm pitch/Connectors for FFC and FPC Emboss Tape This extremely small 0.5 mm pitch connector with a height of only 2.0 mm above the PCB surface allows interconnection in extremely small spaces and is an example of JST's leading edge technology. Zero insertion force mechanism Heat resisting design suitable for surface mounting In-line surface mount tails Two types of connections Embossed tape for automatic mounting Specification.

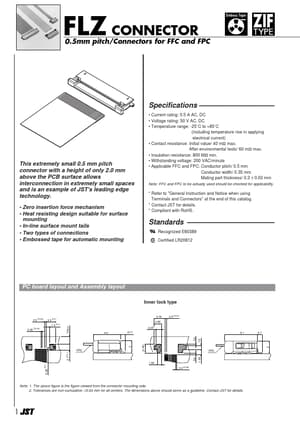

06FLZSM2TB.pdf

20FLZ-SM2-TB Datasheet Preview — This datasheet PDF includes multiple part numbers: 20FLZ-SM2-TB, 06FLZSM2TB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

20FLZ-SM2-TB, 06FLZSM2TB

Manufacturer:

JST

File Size:

61.28 KB

Description:

Connector.

Note:

This datasheet PDF includes multiple part numbers: 20FLZ-SM2-TB, 06FLZSM2TB.
Please refer to the document for exact specifications by model.
