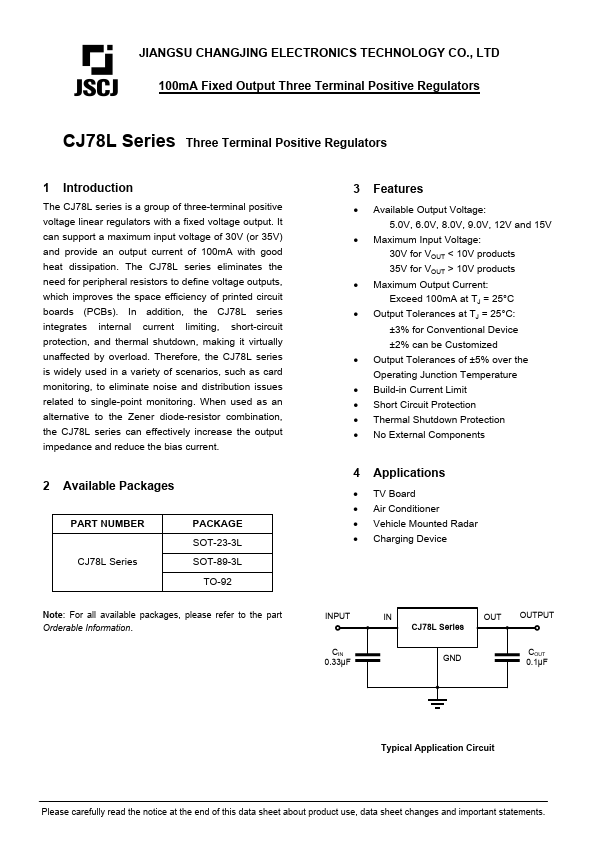

CJ78L08, CJ78L05 - Three Terminal Positive Regulators

Datasheet Details

Part number	CJ78L08, CJ78L05
Manufacturer	JSCJ
File Size	1.55 MB
Description	Three Terminal Positive Regulators
Datasheet	CJ78L05-JSCJ.pdf
Note	This datasheet PDF includes multiple part numbers: CJ78L08, CJ78L05. Please refer to the document for exact specifications by model.

Available Output Voltage: 5.0V, 6.0V, 8.0V, 9.0V, 12V and 15V.
Maximum Input Voltage: 30V for VOUT < 10V products 35V for VOUT > 10V products.
Maximum Output Current: Exceed 100mA at TJ = 25°C.
Output Tolerances at TJ = 25°C: ±3% for Conventional Device ±2% can be Customized.
Output Tolerances of ±5% over the Operating Junction Temperature.
Build-in Current Limit.
Short Circuit Protection.
Thermal Shutdown Protection.
