NJW1280 - High Capacitance Piezo-sounder Driver

JRC

Datasheet Details

Part number	NJW1280
Manufacturer	JRC ↗
File Size	572.99 KB
Description	High Capacitance Piezo-sounder Driver
Datasheet	NJW1280-JRC.pdf

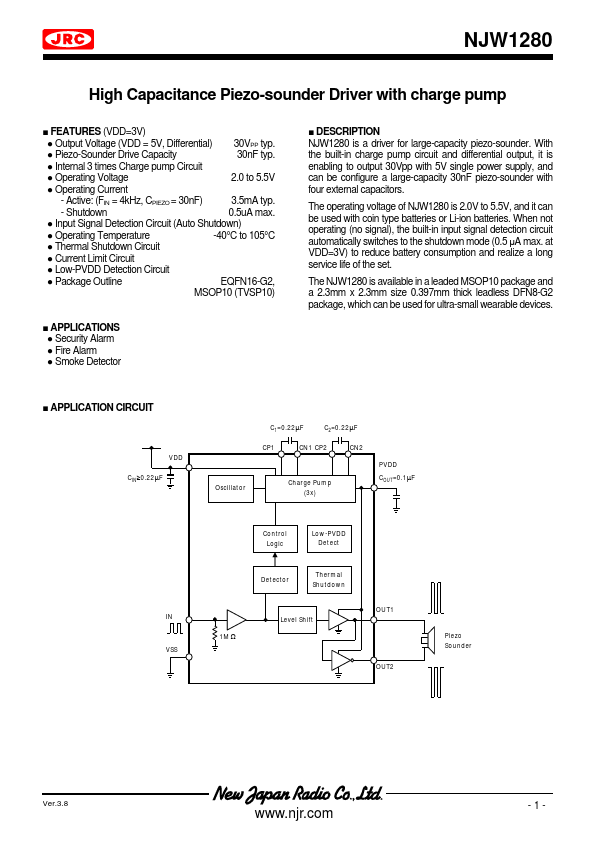

NJW1280 is a driver for large-capacity piezo-sounder.

S (VDD=3V).
Output Voltage (VDD = 5V, Differential).
Piezo-Sounder Drive Capacity.
Internal 3 times Charge pump Circuit.
Operating Voltage.
Operating Current 30VPP typ. 30nF typ. 2.0 to 5.5V - Active: (FIN = 4kHz, CPIEZO = 30nF) 3.5mA typ. - Shutdown 0.5uA max.
Input Signal Detection Circuit (Auto Shutdown).
Operating Temperature.
Thermal Shutdown Circuit.
Current Limit Circuit -40°C to 105°C.
Low-PVDD Detection Circuit.
Package O.
