NJM2878 - Low Dropout Voltage Regulator

Description

with ON/OFF control.

rejection, high accuracy and low quiescent current.

Features

  • High Ripple Rejection 75dB typ. (f=1kHz Vo=3V version) Output Noise Voltage Vno=45µVrms typ. Output capacitor with 0.47µF ceramic capacitor(Vo≥2.7V Version) Output Current Io(max. )=150mA High Precision Output Vo ±1.0% Low Dropout Voltage 0.10V typ. (Io=60mA) ON/OFF Control (Active High) Internal Thermal Overload Protection Internal Over Current Protection Bipolar Technology Package Outline SC88A(NJM2878F3) / SC82AB(NJM2878F4) ) / ESON4-F1(NJM2878KF1) PIN.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJM2871A LOW DROPOUT VOLTAGE REGULATOR New Japan Radio
NJM2872 LOW DROPOUT VOLTAGE REGULATOR New Japan Radio
NJM2800 Low Dropout Voltage Regulator New Japan Radio
NJM2801 Low Dropout Voltage Regulator New Japan Radio
NJM2804 Low Dropout Voltage Regulator New Japan Radio

Other Datasheets by New Japan Radio

Part Number Description
NJM2870 LOW DROPOUT VOLTAGE REGULATOR
NJM2871 LOW DROPOUT VOLTAGE REGULATOR
NJM2871B Low Dropout Voltage Regulator
NJM2872A LOW DROPOUT VOLTAGE REGULATOR
NJM2872B Low Dropout Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

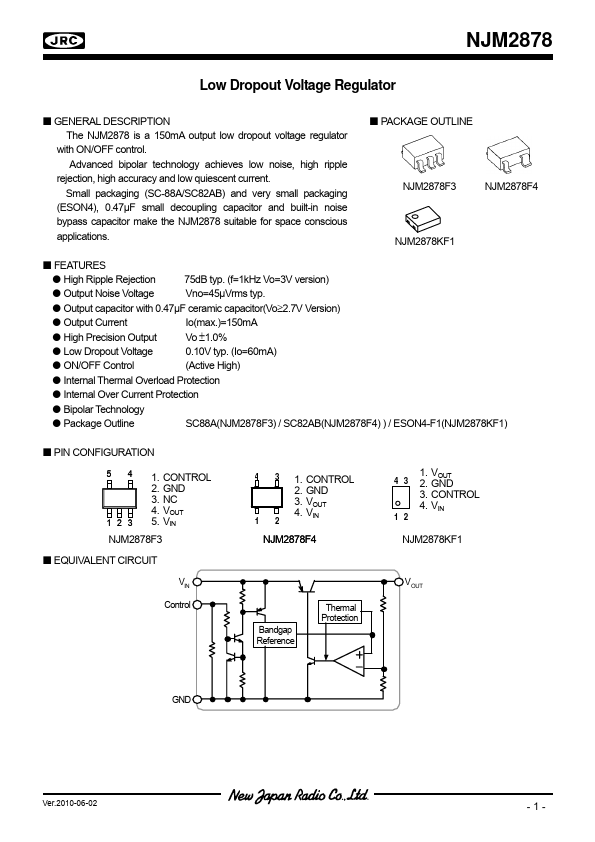

NJM2878 Low Dropout Voltage Regulator GENERAL DESCRIPTION The NJM2878 is a 150mA output low dropout voltage regulator with ON/OFF control. Advanced bipolar technology achieves low noise, high ripple rejection, high accuracy and low quiescent current. Small packaging (SC-88A/SC82AB) and very small packaging (ESON4), 0.47µF small decoupling capacitor and built-in noise bypass capacitor make the NJM2878 suitable for space conscious applications. PACKAGE OUTLINE NJM2878F3 NJM2878F4 NJM2878KF1 FEATURES High Ripple Rejection 75dB typ. (f=1kHz Vo=3V version) Output Noise Voltage Vno=45µVrms typ. Output capacitor with 0.47µF ceramic capacitor(Vo≥2.7V Version) Output Current Io(max.)=150mA High Precision Output Vo ±1.0% Low Dropout Voltage 0.10V typ.
