NJM2761 Audio Limiter

NJM2761 Description

NJM2761 Audio Limiter * GENERAL .
The NJM2761 is the audio limiter for speaker protection.

NJM2761 Features

* Wide Operating Voltage
* Variable Limit Level by external resistor
* Low Output Noise
* Bipolar Technology
* Package Outline +2.7V to +13.0V 0.2 to1V -90dBV max. TVSP10, SSOP14
* BLOCK DIAGRAM INa INb Ver.0.5E Vcc Vref OUTa OUTb INT SENSE SW -1- NJM2761
* PIN CON

📥 Download Datasheet

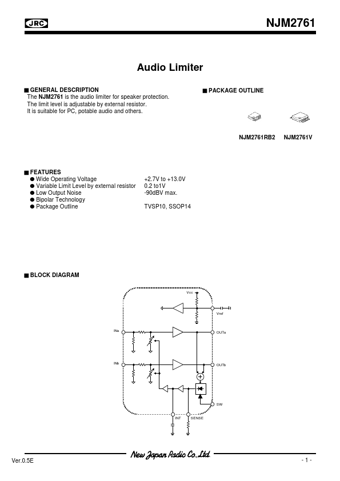

Preview of NJM2761 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NJM2761
Manufacturer
JRC
File Size
292.37 KB
Datasheet
NJM2761_JRC.pdf
Description
Audio Limiter
