1N4752

The 1N4752 is 1W SILICON PLANAR ZENER DIODES designed by JINGHENG ELECTRONICS.

Product Overview

JINGHENG ELECTRONICS

Part number	1N4752, 1N4727
Manufacturer	JINGHENG ELECTRONICS
File Size	117.58 KB
Description	1W SILICON PLANAR ZENER DIODES
Datasheet	1N4727-JINGHENGELECTRONICS.pdf
Note	This datasheet PDF includes multiple part numbers: 1N4752, 1N4727. Please refer to the document for exact specifications by model.

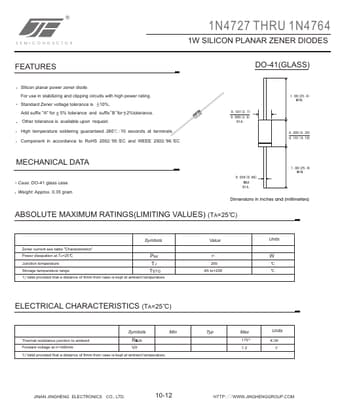

Additional preview pages of the 1N4752 datasheet.

DO-41(GLASS) Silicon planar power zener diode For use in stabilizing and clipping circuits with high power rating. Standard Zener voltage tolerance is 10%. Add suffix "A" for 5% tolerance and suffix"B"for 2%tolerance. Other tolerance is available upon request. High temperature soldering guaranteed:260℃/10 seconds at terminals Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC JF 0.107(2.7) 0.080(2.0) DIA. 1.00(25.4) MIN. 0.205(5.20) 0.161(4.10).
