SR1100SF, SR120SF - SCHOTTKY BARRIER RECTIFIER

SR1100SF Description

R SEMICONDUCTOR SR120SF THRU SR1100SF SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 1.0Ampere .

SR1100SF Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop JF High surge capability For use in low vol

SR1100SF Applications

* High temperature soldering guaranteed:250 C/10 seconds at terminals, 0.375"(9.5mm)lead length,5lbs. (2.3kg)tension MECHANICAL DATA SOD-123FL 0.040(1.00 ) 0.020(0.50) 0.010(0.25) MAX 0.114(2.90 ) 0.098(2.50) 0.154(3.90) 0.138(3.50) 5° 0.077(1.95 ) 0.054(1.38) 0.052(1.33) 0.031(0.8) Case: SOD

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR1100SF, SR120SF. Please refer to the document for exact specifications by model.

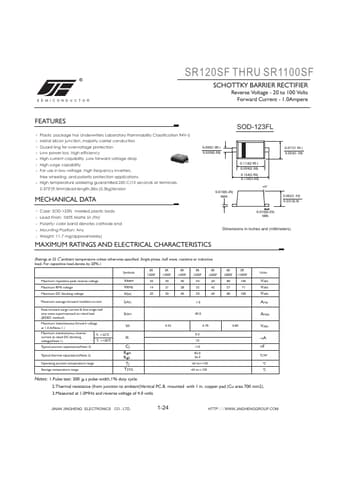

datasheet Preview Page 2

Datasheet Details

Part number
SR1100SF, SR120SF
Manufacturer
JINAN JINGHENG
File Size
66.17 KB
Datasheet
SR120SF-JINANJINGHENG.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SR1100SF, SR120SF.
Please refer to the document for exact specifications by model.
