SC0806 SILICON CARBIDE SCHOTTKY DIODE

JINAN JINGHENG

Description

R SEMICONDUCTOR SC0806 SILICON CARBIDE SCHOTTKY DIODE Reverse Voltage - 600 Volts Forward Current - 8.0Amperes .
SIC Schottky Diode has no switching loss,provides improved system efficiency against Si diodes by utilizing new semiconductor material-Silicon Carbide.

📥 Download Datasheet

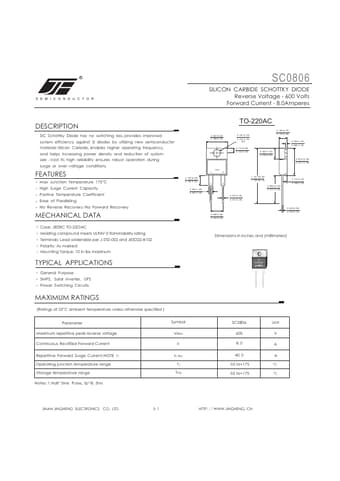

SC0806 Datasheet Preview — Preview of SC0806 PDF

Datasheet Specifications

Part number: SC0806
Manufacturer: JINAN JINGHENG
File Size: 60.81 KB
Datasheet: SC0806-JINANJINGHENG.pdf
Description: SILICON CARBIDE SCHOTTKY DIODE

Features

* Max Junction Temperature 175°C High Surge Current Capacity Positive Temperature Coefficient Ease of Paralleling No Reverse Recovery/No Forward Recovery MECHANICAL DATA Case: JEDEC TO-22OAC Molding compound meets UL94V-0 flammability rating Terminals: Lead solderable per J-STD-002 and JESD22-B102 Pol

Applications

* General Purpose SMPS, Solar inverter, UPS Power Switching Circuits MAXIMUM RATINGS (Ratings at 25°C ambient temperature unless otherwise specified
