DP45C120 High Voltage RECTIFIER DIODE

DP45C120 Description

High Voltage RECTIFIER DIODE DP45C120 MAIN CHARACTERISTICS IF(AV) VR Tj(max) VF(typ)25℃ 45A 1200 V 150℃ 1.1V Package TO-247-2L * * .

DP45C120 Features

* Low power loss, high efficiency
* High reliability
* RoHS product ORDER MESSAGE Order codes - Halogen-Tube - Halogen Free-Tube DP45C120-GL-B DP45C120-GL-BR Marking DP45C120 Package TO-247-2L ：202402E 1/4 DP45C120 ABSOLUTE RATINGS (Tc=25℃) Parameter Repetitive pea

DP45C120 Applications

* Snubber diode
* Switch power supply
* Antiparalle Diode for high frequ ency switching devices
* ，

📥 Download Datasheet

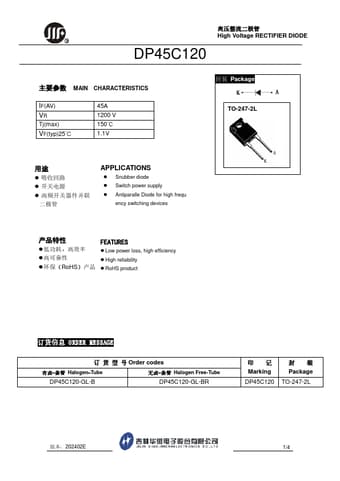

Preview of DP45C120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DP45C120
Manufacturer
JILIN SINO
File Size
486.10 KB
Datasheet
DP45C120-JILINSINO.pdf
Description
High Voltage RECTIFIER DIODE
