R

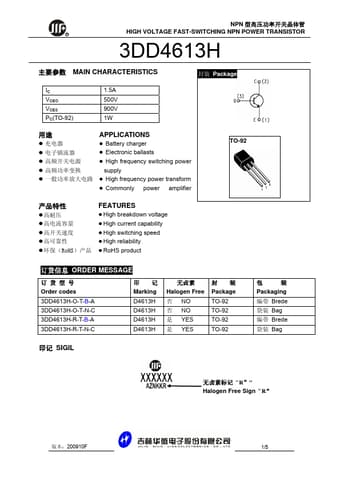

NPN HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
3DD4613H
IC VCEO VCES PC(TO-92)
MAIN CHARACTERISTICS
1.5A 500V 900V 1W
Package
z z z z z
APPLICATIONS
z Battery charger z Electronic ballasts z High frequency switching power
TO-92
supply z High frequency power transform z Commonly power amplifier
z z z z z （RoHS）
FEATURES
z High breakdown voltage z High current capability z High switching speed z High reliability z RoHS product
www.DataSheet.co.kr
ORDER MESSAGE
Order codes 3DD4613H-O-T-B-A 3DD4613H-O-T-N-C 3DD4613H-R-T-B-A 3DD4613H-R-T-N-C Halogen Free NO NO YES YES TO-92 TO-92 TO-92 TO-92 Marking D4613H D4613H D4613H D4613H Package Packaging Brede Bag Brede Bag
SIGIL
“R”” Halogen Free Sign“R”
：200910F
1/5
