30F120WT - FAST RECOVER DIODE

30F120WT Description

R 30F120WT MAIN CHARACTERISTICS IF(AV) VRRM Tj(max) VF(typ) Trr（typ） 30A 1200V 175℃ 2.7V 45ns FAST RECOVERY DIODE Package TO-247-2L *

30F120WT Features

* Low power loss, high efficiency
* High reliability
* RoHS product ORDER MESSAGE Order codes - - Halogen-Tube Halogen Free-Tube 30F120WT-GL-B 30F120WT-GL-BR Marking 30F120WT Package TO-247-2L ：202309D 1/5 R ABSOLUTE RATINGS (Tc=25℃) Parameter Max Repetitive peak

30F120WT Applications

* Snubber diode
* Switch power supply
* UPS
* Antiparalle Diode for high frequency switching devices
* ，

📥 Download Datasheet

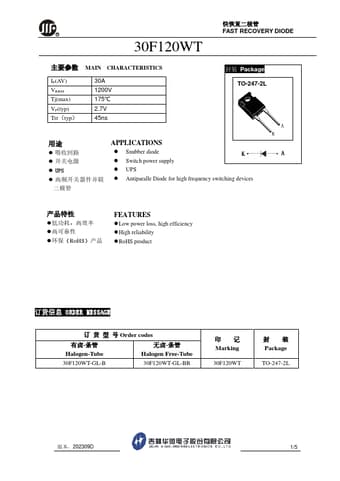

Preview of 30F120WT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
30F120WT
Manufacturer
JILIN SINO
File Size
849.40 KB
Datasheet
30F120WT-JILINSINO.pdf
Description
FAST RECOVER DIODE
