3DD13009N - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

Download the 3DD13009N datasheet PDF. This datasheet also covers the 3DD13009N_JILINSINO variant, as both devices belong to the same high voltage fast-switching npn power transistor family and are provided as variant models within a single manufacturer datasheet.

Description

of Changes ：201007A 7/7 Free Datasheet http://www.datasheet4u.com/

Features

  • z High breakdown voltage z High current capability z High switching speed z High reliability z RoHS product ORDER.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (3DD13009N_JILINSINO-MICROELECTRONICS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 3DD13009N
Manufacturer JILIN SINO-MICROELECTRONICS
File Size 382.30 KB
Description HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
Datasheet download datasheet 3DD13009N Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
3DD13009N NPN Transistor INCHANGE
3DD13009NL NPN Transistor INCHANGE
3DD13009 NPN Transistor INCHANGE
3DD13009 NPN Transistor LGE
3DD13009 NPN Transistor Dayan Technology

Other Datasheets by JILIN SINO-MICROELECTRONICS

Part Number Description
3DD13009NL HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
3DD13009K HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
3DD13009M HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
3DD13001A HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
3DD13001H HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

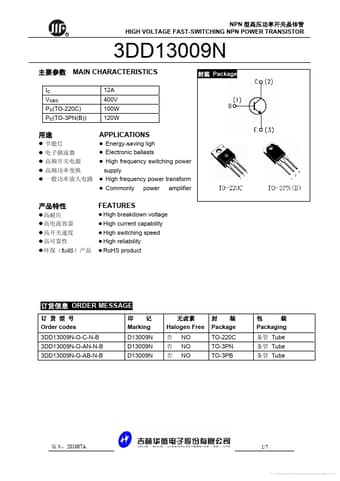

R NPN HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR 3DD13009N IC VCEO PC(TO-220C) PC(TO-3PN(B)) MAIN CHARACTERISTICS 12A 400V 100W 120W Package z z z z z APPLICATIONS z Energy-saving ligh z Electronic ballasts z High frequency switching power supply z High frequency power transform z Commonly power amplifier z z z z z （RoHS） FEATURES z High breakdown voltage z High current capability z High switching speed z High reliability z RoHS product ORDER MESSAGE Order codes 3DD13009N-O-C-N-B 3DD13009N-O-AN-N-B 3DD13009N-O-AB-N-B Halogen Free NO NO NO Marking D13009N D13009N D13009N Package TO-220C TO-3PN TO-3PB Packaging Tube Tube Tube ：201007A 1/7 Free Datasheet http://www.datasheet4u.
