SMF26ALH, SMF10ALH 400W Transient Voltage Suppressor

SMF26ALH Description

JIEJIE MICROELECTRONICS CO., Ltd SMFxxALH Series 400W Transient Voltage Suppressor Rev.1.3 .
TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications,.

SMF26ALH Features

* SOD-123FL
* Low profile package.
* Low inductance.
* Excellent clamping capability. Symbol
* 400W peak pulse power capability at 10/1000μs waveform.
* Typical IR less than 1μA above 10V.
* Fast response time: typically less than 1.0ps from 0V to VBR min.
* High

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMF26ALH, SMF10ALH. Please refer to the document for exact specifications by model.

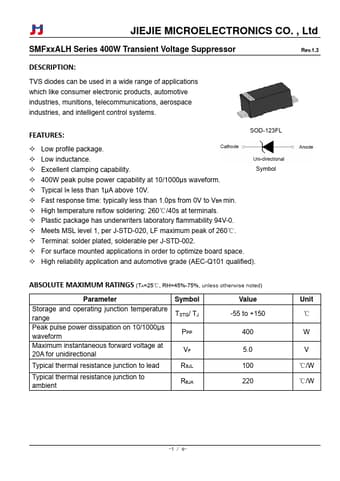

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMF26ALH, SMF10ALH
Manufacturer
JIEJIE
File Size
292.57 KB
Datasheet
SMF10ALH-JIEJIE.pdf
Description
400W Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: SMF26ALH, SMF10ALH.
Please refer to the document for exact specifications by model.
