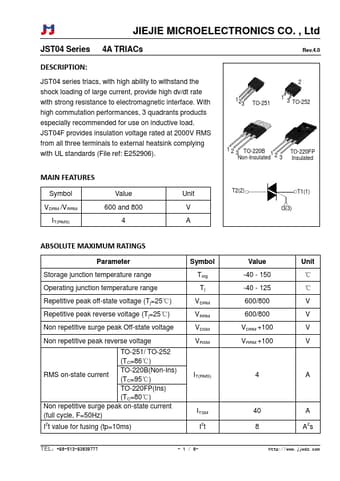

JST04 4A TRIAC

JST04 series triacs, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interface. With high commutation performances, 3 quadrants products especially recommended for use on inductive load. JST04F provides insulation .

JST04 Features

* Symbol VDRM /VRRM IT(RMS) Value 600 and 800 4 Unit V A T2(2) T1(1) G(3) ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage (Tj=25℃) Repetitive peak reverse voltage (Tj=25℃) Non repetitive surge peak Off-s
