JCT655 55A SCRs

JIEJIE

Description

JIEJIE MICROELECTRONICS CO., Ltd JCT655/855 Series 55A SCRs Rev.3.0 .
JCT655/855 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with s.

📥 Download Datasheet

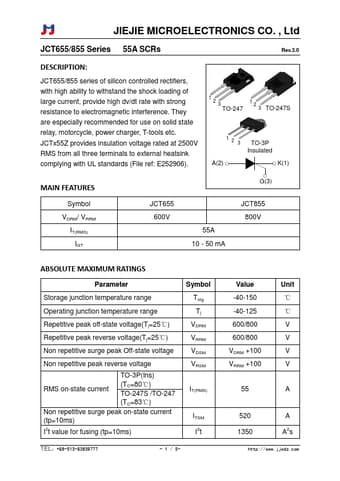

JCT655 Datasheet Preview — Preview of JCT655 PDF

Datasheet Specifications

Part number: JCT655
Manufacturer: JIEJIE
File Size: 424.52 KB
Datasheet: JCT655-JIEJIE.pdf
Description: 55A SCRs

Features

* Symbol VDRM/ VRRM IT(RMS) IGT G(3) JCT655 600V 55A 10 - 50 mA JCT855 800V ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak reverse voltage(Tj=25℃) Non repetitive surge peak Off-s
