JCT640A, JCT640 40A SCRs

JIEJIE

Description

JIEJIE MICROELECTRONICS CO., Ltd JCT640/840 Series 40A SCRs Rev.3.0 .
JCTx40 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with stro.

📥 Download Datasheet

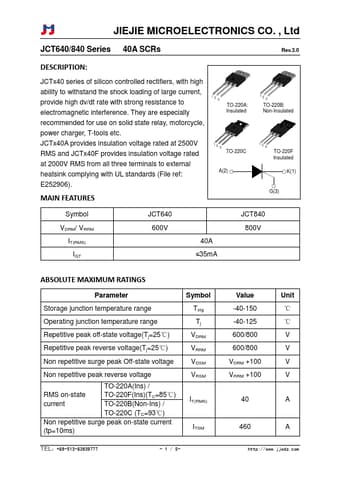

JCT640A Datasheet Preview — This datasheet PDF includes multiple part numbers: JCT640A, JCT640. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: JCT640A, JCT640
Manufacturer: JIEJIE
File Size: 374.18 KB
Datasheet: JCT640-JIEJIE.pdf
Description: 40A SCRs
Note: This datasheet PDF includes multiple part numbers: JCT640A, JCT640.
Please refer to the document for exact specifications by model.

Features

* 12 3 TO-220B: Non-Insulated 12 3 TO-220F Insulated K(1) G(3) Symbol VDRM/ VRRM IT(RMS) IGT JCT640 600V 40A ≤35mA JCT840 800V ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak
