JCT612H - 12A SCRs

Download the JCT612H datasheet PDF. This datasheet also covers the JCT612 variant, as both devices belong to the same 12a scrs family and are provided as variant models within a single manufacturer datasheet.

Description

to electromagnetic interference.

Features

  • 123 TO-220F Insulated A(2) Symbol VDRM/ VRRM IT(RMS) IGT JCT612 600V 12A ≤15mA JCT812 800V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (JCT612-JIEJIE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number JCT612H
Manufacturer JIEJIE
File Size 376.58 KB
Description 12A SCRs
Datasheet download datasheet JCT612H Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by JIEJIE

Part Number Description
JCT612 12A SCRs
JCT612A 12A SCRs
JCT612B 12A SCRs
JCT612F 12A SCRs
JCT612K 12A SCRs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

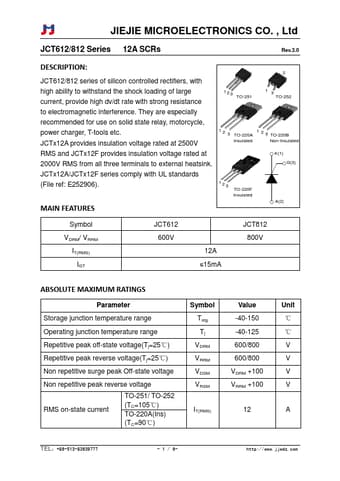

JIEJIE MICROELECTRONICS CO. , Ltd JCT612/812 Series 12A SCRs Rev.3.0 DESCRIPTION: JCT612/812 series of silicon controlled rectifiers, with 2 high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance 1 2 3 TO-251 13 TO-252 to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools etc. JCTx12A provides insulation voltage rated at 2500V 1 2 3 TO-220A 1 2 3 TO-220B Insulated Non-Insulated RMS and JCTx12F provides insulation voltage rated at K(1) 2000V RMS from all three terminals to external heatsink. G(3) JCTx12A/JCTx12F series comply with UL standards (File ref: E252906).
