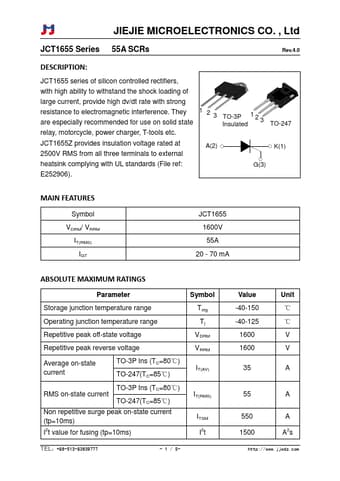

JCT1655S 55A SCRs

JCT1655 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools etc.

JCT1655S Features

* Symbol VDRM/ VRRM IT(RMS) IGT JCT1655 1600V 55A 20 - 70 mA ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage Repetitive peak reverse voltage Average on-state current TO-3P Ins (TC=80℃) TO-247(TC=85℃)
