6AJ110A - 600W Transient Voltage Suppressor

Download the 6AJ110A datasheet PDF. This datasheet also covers the 6AJ5.0A variant, as both devices belong to the same 600w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Description

TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.

Features

  • Low profile package.
  • Low inductance.
  • Excellent clamping capability. Symbol.
  • 600W peak pulse power capability at 10/1000μs waveform.
  • Typical IR less than 1μA above 10V.
  • Fast response time: typically less than 1.0ps from 0V to VBR min. .
  • High temperature to reflow soldering: 260℃/40s at terminals. .
  • Plastic package has underwriters laboratory flammability 94V-0.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃.
  • Terminal:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (6AJ5.0A-JIEJIE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 6AJ110A
Manufacturer JIEJIE
File Size 246.00 KB
Description 600W Transient Voltage Suppressor
Datasheet download datasheet 6AJ110A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
6AJ5 Pentode ETC

Other Datasheets by JIEJIE

Part Number Description
6AJ110CA 600W Transient Voltage Suppressor
6AJ11A 600W Transient Voltage Suppressor
6AJ11CA 600W Transient Voltage Suppressor
6AJ100A 600W Transient Voltage Suppressor
6AJ100CA 600W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

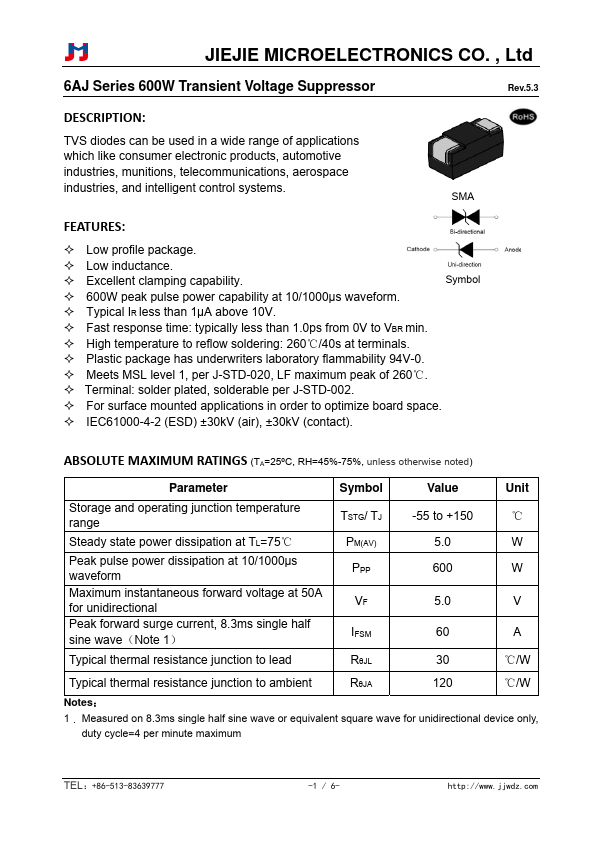

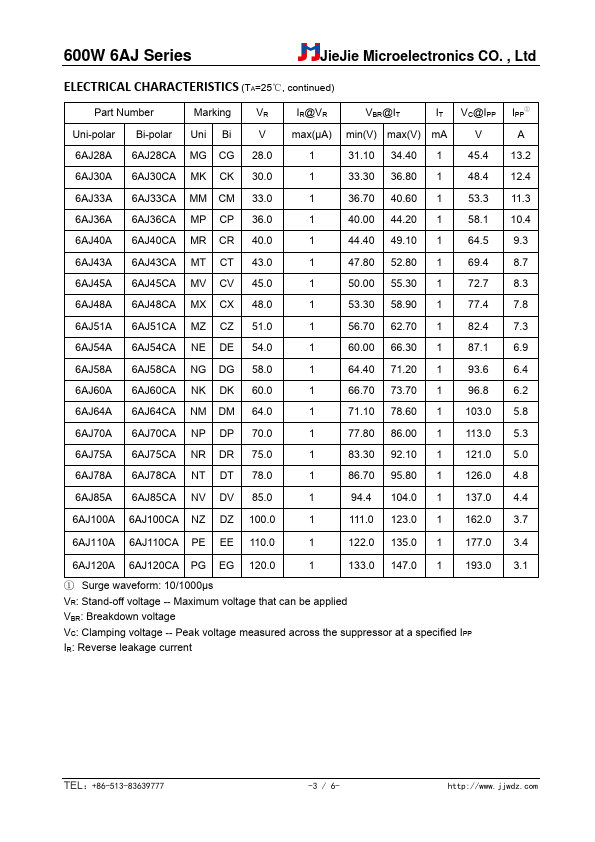

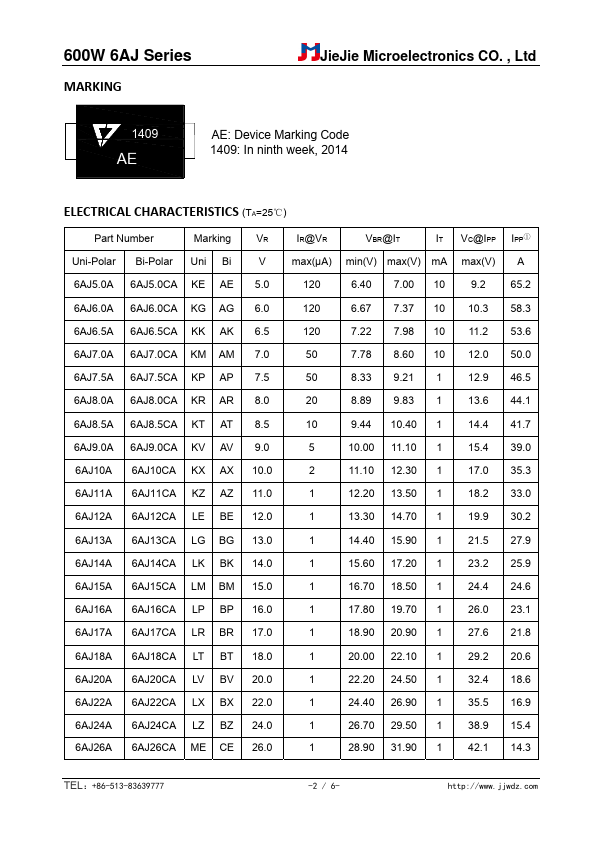

JIEJIE MICROELECTRONICS CO. , Ltd 6AJ Series 600W Transient Voltage Suppressor Rev.5.3 DESCRIPTION: TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems. SMA FEATURES: Low profile package. Low inductance. Excellent clamping capability. Symbol 600W peak pulse power capability at 10/1000μs waveform. Typical IR less than 1μA above 10V. Fast response time: typically less than 1.0ps from 0V to VBR min. High temperature to reflow soldering: 260℃/40s at terminals. Plastic package has underwriters laboratory flammability 94V-0. Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃.
