ZPD24B, ZPD2V7B - Silicon Epitaxial Planar Zener Diodes

Name: ZPD24B
SKU: ZPD24B-1344584

JGD

The ZPD24B by JGD is a Silicon Epitaxial Planar Zener Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	ZPD24B, ZPD2V7B
Manufacturer	JGD
File Size	151.70 KB
Description	Silicon Epitaxial Planar Zener Diodes
Datasheet	ZPD2V7B-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: ZPD24B, ZPD2V7B. Please refer to the document for exact specifications by model.

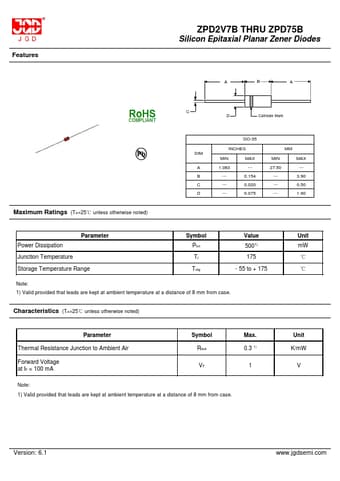

Additional preview pages of the ZPD24B datasheet.

ZPD2V7B THRU ZPD75B Silicon Epitaxial Planar Zener Diodes ABA C D Cathode Mark Maximum Ratings (TA=25℃ unless otherwise noted) DO-35 INCHES MM DIM MIN MAX MIN MAX A 1.083 --- 27.50 --- B --- 0.154 --- 3.90 C --- 0.020 --- 0.50 D --- 0.075 --- 1.90 Power Dissipation Parameter Junction Temperature Storage Temperature Range Symbol Ptot Tj Tstg Value 5001) 175 - 55 to + 175 Note: 1) Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case. C.
