SS38 - 3.0 Amps. Surface Mount Schottky Barrier Rectifiers

Download the SS38 datasheet PDF (SS32 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 3.0 amps. surface mount schottky barrier rectifiers.

Features

  • SS32 THRU SS320 3.0 Amps. Surface Mount Schottky Barrier Rectifiers.
  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SS32-JGD.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SS38
Manufacturer JGD
File Size 279.36 KB
Description 3.0 Amps. Surface Mount Schottky Barrier Rectifiers
Datasheet download datasheet SS38 Datasheet

📁 Similar Datasheet

  • SS38 - SCHOTTKY BARRIER RECTIFIERS (SEMTECH)
  • SS38 - 3A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
  • SS38 - 3.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • SS38 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Suntan)
  • SS38 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (YS)
  • SS38 - SCHOTTKY BARRIER RECTIFIERS (GME)
  • SS38 - Schottky Rectifier (ON Semiconductor)
  • SS38 - Schottky Rectifiers (Fairchild Semiconductor)
  • SS38 - (SS32 - SS39) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (CDIL)
  • SS38 - (SS32 - SS310) CURRENT 3.0Amperes VOLTAGE 20 to 100 Volts (Daesan Electronics)
Other Datasheets by JGD
  • SS38BF - 3.0 Amp. Surface Mount Schottky Barrier Rectifiers
  • SS310 - 3.0 Amps. Surface Mount Schottky Barrier Rectifiers
  • SS310BF - 3.0 Amp. Surface Mount Schottky Barrier Rectifiers
  • SS312BF - 3.0 Amp. Surface Mount Schottky Barrier Rectifiers
  • SS315 - 3.0 Amps. Surface Mount Schottky Barrier Rectifiers
  • SS315BF - 3.0 Amp. Surface Mount Schottky Barrier Rectifiers
  • SS32 - 3.0 Amps. Surface Mount Schottky Barrier Rectifiers
  • SS320 - 3.0 Amps. Surface Mount Schottky Barrier Rectifiers

Full PDF Text Transcription

Click to expand full text

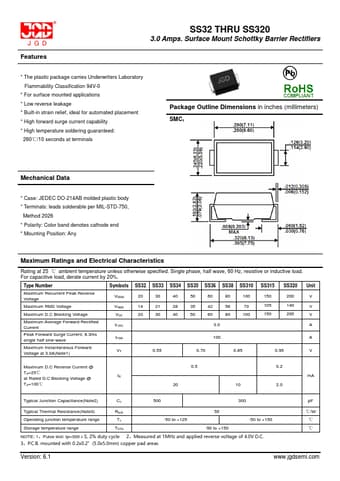

Features SS32 THRU SS320 3.0 Amps. Surface Mount Schottky Barrier Rectifiers * The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 * For surface mounted applications * Low reverse leakage * Built-in strain relief, ideal for automated placement * High forward surge current capability * High temperature soldering guaranteed: 260℃/10 seconds at terminals Package Outline Dimensions in inches (millimeters) SMC： Mechanical Data * Case: JEDEC DO-214AB molded plastic body * Terminals: leads solderable per MIL-STD-750, Method 2026 * Polarity: Color band denotes cathode end * Mounting Position: Any Maximum Ratings and Electrical Characteristics Rating at 25 ℃ ambient temperature unless otherwise specified.
