SB1050F, SB1020F - Isolated Schottky Barrier Rectifiers

Datasheet Details

Part number	SB1050F, SB1020F
Manufacturer	JGD
File Size	231.68 KB
Description	Isolated Schottky Barrier Rectifiers
Datasheet	SB1020F-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: SB1050F, SB1020F. Please refer to the document for exact specifications by model.

Low power loss, high efficiency.
Guard-ring for overvoltage protection.
High surge current capability.

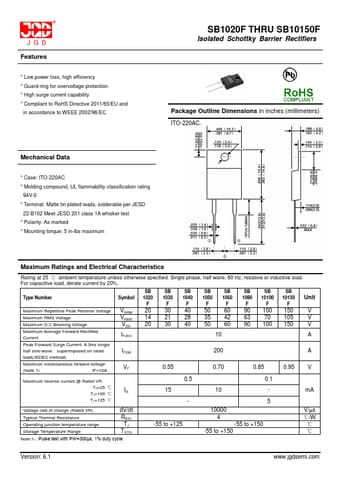

Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC SB1020F THRU SB10150F Isolated Schottky Barrier Rectifiers Package Outline Dimensions in inches (millimeters) ITO-220AC： Mechanical Data.
Case: ITO-220AC.
Molding compound, UL flammability classification rating 94V-0.
Terminal: Matte tin plated leads, solderable per JESD 22-B102 Mee.
