MBRF2545CT, MBRF2535CT - Dual Common Cathode Schottky Rectifiers

Name: MBRF2545CT
SKU: MBRF2545CT-1215846

JGD

The MBRF2545CT by JGD is a Dual Common Cathode Schottky Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	MBRF2545CT, MBRF2535CT
Manufacturer	JGD
File Size	372.41 KB
Description	Dual Common Cathode Schottky Rectifiers
Datasheet	MBRF2535CT-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: MBRF2545CT, MBRF2535CT. Please refer to the document for exact specifications by model.

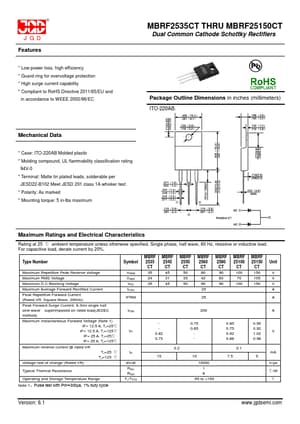

Additional preview pages of the MBRF2545CT datasheet.

Low power loss, high efficiency.
Guard-ring for overvoltage protection.
High surge current capability.
Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC MBRF2535CT THRU MBRF25150CT Dual Common Cathode Schottky Rectifiers Package Outline Dimensions in inches (millimeters) ITO-220AB： Mechanical Data.
Case: ITO-220AB Molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminal: Matte tin plated leads, soldera.
