MBRD1060CT, MBRD1020CT - 10 Amps Schottky Rectifiers

Name: MBRD1060CT
SKU: MBRD1060CT-953771

JGD

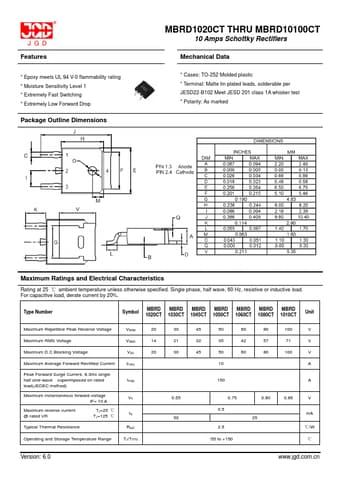

The MBRD1060CT by JGD is a 10 Amps Schottky Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	MBRD1060CT, MBRD1020CT
Manufacturer	JGD
File Size	335.11 KB
Description	10 Amps Schottky Rectifiers
Datasheet	MBRD1020CT-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: MBRD1060CT, MBRD1020CT. Please refer to the document for exact specifications by model.
Additional preview pages of the MBRD1060CT datasheet.

Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Extremely Fast Switching.
Extremely Low Forward Drop Package Outline Dimensions MBRD1020CT THRU MBRD10100CT 10 Amps Schottky Rectifiers Mechanical Data.
Cases: TO-252 Molded plastic.
Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test.
Polarity: As marked Maximum Ratings and Electrical Characteristics Rating at 25 ℃ ambient temperature unless.
