MBR4035PT - Dual Common Cathode Schottky Rectifiers

Name: MBR4035PT
SKU: MBR4035PT-1203101

JGD

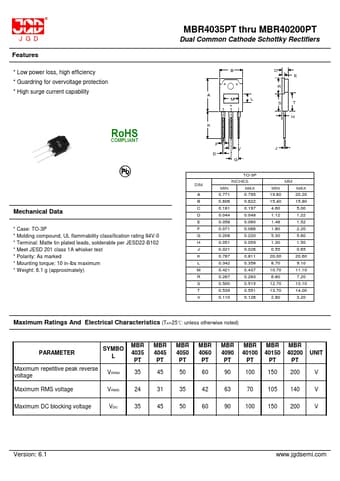

The MBR4035PT by JGD is a Dual Common Cathode Schottky Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	MBR4035PT
Manufacturer	JGD
File Size	280.01 KB
Description	Dual Common Cathode Schottky Rectifiers
Datasheet	MBR4035PT-JGD.pdf
Additional preview pages of the MBR4035PT datasheet.

Low power loss, high efficiency.
Guardring for overvoltage protection.
High surge current capability Mechanical Data.
Case: TO-3P.
Molding compound, UL flammability classification rating 94V-0.
Terminal: Matte tin plated leads, solderable per JESD22-B102.
Meet JESD 201 class 1A whisker test.
Polarity: As marked.
Mounting torque: 10 in-lbs maximum.
Weight: 6.1 g (approximately) MBR4035PT thru MBR40200PT Dual Common Cathode Schottky Rectifiers B.
