KBU606, KBU6006 - Single Phase 6.0 Amps. Glass Passivated Bridge Rectifiers

Datasheet Details

Part number	KBU606, KBU6006
Manufacturer	JGD
File Size	346.71 KB
Description	Single Phase 6.0 Amps. Glass Passivated Bridge Rectifiers
Datasheet	KBU6006-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: KBU606, KBU6006. Please refer to the document for exact specifications by model.

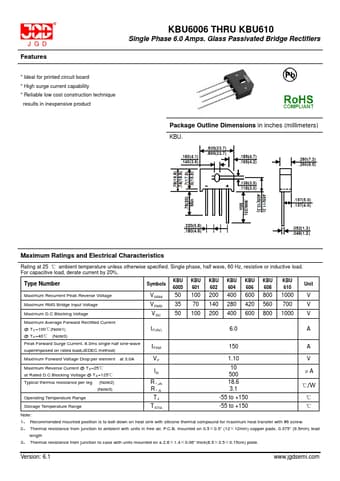

KBU6006 THRU KBU610 Single Phase 6.0 Amps. Glass Passivated Bridge Rectifiers.
Ideal for printed circuit board.
High surge current capability.
Reliable low cost construction technique results in inexpensive product Package Outline Dimensions in inches (millimeters) KBU： Maximum Ratings and Electrical Characteristics Rating at 25 ℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by.
