Features
* Low Zener Impedance * Low Regulation Factor * VZ – tolerance: ±5% * For Surface Mount Applications * Epoxy meets UL 94 V-0 flammability rating * Moisture Sensitivity Level 1
Mechanical Data
* Case: DO-214AC Molded plastic * Terminals: Solder plated * Polarity: Indicated by cathode band * Standard packaging: 12mm tape(ELA STD RS-481)

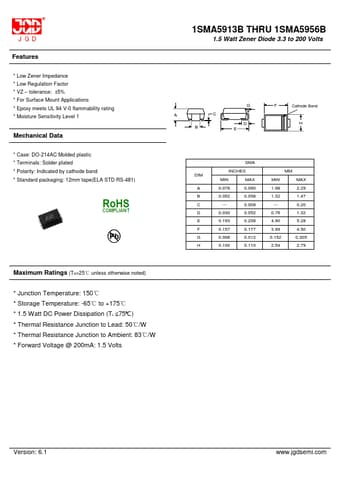

1SMA5913B THRU 1SMA5956B
1.5 Watt Zener Diode 3.3 to 200 Volts
G
AC
B
D E
F Cathode Band H
SMA
INCHES
MM
DIM
MIN MAX MIN MAX
A
0.078
0.090
1.98
2.29
B
0.052
0.058
1.32
1.47
C
--- 0.008 ---
0.20
D
0.030
0.052
0.76
1.32
E
0.193
0.208
4.90
5.28
F
0.157
0.177
3.99
4.50
G
0.006
0.012
0.152
0.305
H
0.100
0.110
2.54
2.
