1N5399 - 1.5 Amps. Silicon Rectifiers

Download the 1N5399 datasheet PDF. This datasheet also covers the 1N5391 variant, as both devices belong to the same 1.5 amps. silicon rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1N5391 THRU 1N5399 1.5 Amps. Silicon Rectifiers.
  • Low Forward Voltage Drop.
  • High Current Capability.
  • High Reliability.
  • High Surge Current Capability Mechanical Data Package Outline Dimensions DO-15：.
  • Case: Molded plastic.
  • Epoxy: UL 94V-0 rate flame retardant.
  • Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed.
  • Polarity: Color band denotes cathode end.
  • Mounting Position: Any DIM. A B C D E Unit（mm） Min Max 2.6 3.6 0.7 0.9 25.4 5.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5391-JGD.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N5399
Manufacturer JGD
File Size 402.70 KB
Description 1.5 Amps. Silicon Rectifiers
Datasheet download datasheet 1N5399 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N5399 SILICON RECTIFIER Rectron
1N5399 AXIAL LEADED SILICON RECTIFIER DIODES Sunmate
1N5399 SILICON RECTIFIER DC COMPONENTS
1N5399 GENERAL PURPOSE PLASTIC RECTIFIER General Semiconductor
1N5399 1.5A RECTIFIER Diodes Incorporated

Other Datasheets by JGD

Part Number Description
1N5399S 1.5 Amps. Silicon Rectifiers
1N5391 1.5 Amps. Silicon Rectifiers
1N5391S 1.5 Amps. Silicon Rectifiers
1N5392 1.5 Amps. Silicon Rectifiers
1N5392S 1.5 Amps. Silicon Rectifiers

Full PDF Text Transcription

Click to expand full text

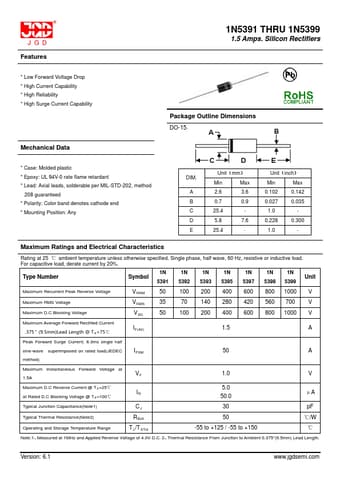

Features 1N5391 THRU 1N5399 1.5 Amps. Silicon Rectifiers * Low Forward Voltage Drop * High Current Capability * High Reliability * High Surge Current Capability Mechanical Data Package Outline Dimensions DO-15： * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed * Polarity: Color band denotes cathode end * Mounting Position: Any DIM. A B C D E Unit（mm） Min Max 2.6 3.6 0.7 0.9 25.4 5.8 7.6 25.4 - Unit（inch） Min Max 0.102 0.142 0.027 0.035 1.0 - 0.228 0.300 1.0 - Maximum Ratings and Electrical Characteristics Rating at 25 ℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
