ESDH4V5P1 - Uni-direction Transient Voltage Suppressor

Product Overview

JCET

📥 Download Datasheet

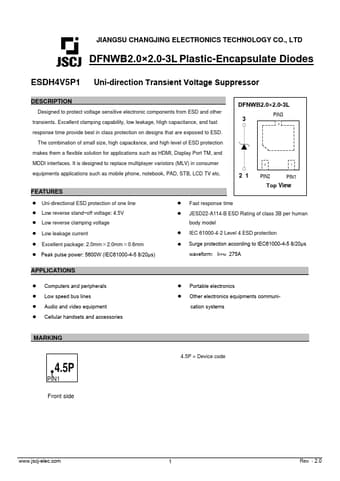

ESDH4V5P1 Uni-direction Transient Voltage Suppressor by JCET - Datasheet Preview — Datasheet preview – ESDH4V5P1

Datasheet Details

Part number	ESDH4V5P1
Manufacturer	JCET
File Size	732.41 KB
Description	Uni-direction Transient Voltage Suppressor
Datasheet	ESDH4V5P1 Datasheet
Additional preview pages of the ESDH4V5P1 datasheet.

Product details

Description

Designed to protect voltage sensitive electronic components from ESD and other transients.

Features

2 1 2 1 PIN2 PIN1 Top View.
Uni-directional ESD protection of one line.
Low reverse stand.
off voltage: 4.5V.
Low reverse clamping voltage.
Fast response time.
JESD22-A114-B ESD Rating of class 3B per human body model.
Low leakage current.
IEC 61000-4-2 Level 4 ESD protection.
Excellent package: 2.0mm×2.0mm×0.6mm.
Peak pulse power: 5600W (IEC61000-4-5 8/20μs).
Surge protection according to IEC61000-4-5 8/20μs waveform: IPPM 275A.
