B5819WS - SCHOTTKY BARRIER DIODE

Download the B5819WS datasheet PDF (B5817WS included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for schottky barrier diode.

Features

  • For use in low voltage, high frequency inverters Free wheeling, and polarity protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B5817WS-JCET.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number B5819WS
Manufacturer JCET
File Size 703.66 KB
Description SCHOTTKY BARRIER DIODE
Datasheet download datasheet B5819WS Datasheet

📁 Similar Datasheet

  • B5819WS - SCHOTTKY BARRIER DIODE (SMC Diode)
  • B5819WS - Schottky Barrier Diode (GME)
  • B5819WS - SURFACE MOUNT SCHOTTKY BARRIER DIODE (LITE-ON)
  • B5819WS - Plastic-Encapsulate Schottky Barrier Diode (Rectron)
  • B5819WS - SCHOTTKY DIODE (AiT Semiconductor)
  • B5819WS - 1A SCHOTTKY BARRIER RECTIFIER (UTC)
  • B5819WS - Surface Mount Schottky Barrier Diodes (WEITRON)
  • B5819WS - Schottky Barrier Rectifier (MCC)
  • B5819WS - Schottky Diode (Taiwan Semiconductor)
  • B5819WS - SCHOTTKY BARRIER DIODE (HOTTECH)
Other Datasheets by JCET
  • B5819W - SCHOTTKY BARRIER DIODE
  • B5817W - SCHOTTKY BARRIER DIODE
  • B5817WS - SCHOTTKY BARRIER DIODE
  • B5818W - SCHOTTKY BARRIER DIODE
  • B5818WS - SCHOTTKY BARRIER DIODE

Full PDF Text Transcription

Click to expand full text

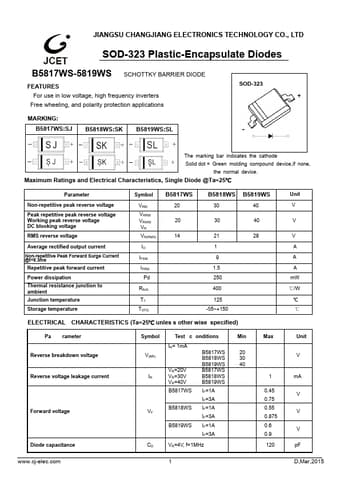

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-323 Plastic-Encapsulate Diodes B5817WS-5819WS SCHOTTKY BARRIER DIODE FEATURES For use in low voltage, high frequency inverters Free wheeling, and polarity protection applications MARKING: B5817WS:SJ B5818WS:SK B5819WS:SL SOD-323 The marking bar indicates the cathode Solid dot = Green molding compound device,if none, the normal device. Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25℃ Parameter Non-repetitive peak reverse voltage Peak repetitive peak reverse voltage Working peak reverse voltage DC blocking voltage RMS reverse voltage Average rectified output current Non-repetitive Peak Forward Surge Current @t=8.
