2SK3019 - N-Channel MOSFET

Description

SOT-523 parts are shipped in tape.

tape is made from a dissipative (carbon filled) polycarbonate resin.

The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent.

📥 Download Datasheet

Datasheet Details

Part number 2SK3019
Manufacturer JCET
File Size 1.10 MB
Description N-Channel MOSFET
Datasheet download datasheet 2SK3019 Datasheet

📁 Similar Datasheet

  • 2SK3019 - 2.5V Drive Nch MOS FET (Rohm)
  • 2SK3019 - N-Channel MOSFET (Kexin)
  • 2SK3019 - Small Signal MOSFET Transistor (GME)
  • 2SK3019C3 - ESD protected N-Channel Enhancement Mode MOSFET (CYStech)
  • 2SK301 - N-Channel MOSFET (Panasonic Semiconductor)
  • 2SK3012 - VX-2 Series Power MOSFET (Shindengen Electric Mfg.Co.Ltd)
  • 2SK3013 - VX-2 Series Power MOSFET (Shindengen Electric Mfg.Co.Ltd)
  • 2SK3017 - Silicon N Channel MOS Type Field Effect Transistor (Toshiba Semiconductor)
  • 2SK3018 - 2.5V Drive Nch MOS FET (Rohm)
  • 2SK3018 - N-CHANNEL MOSFET (BLUE ROCKET ELECTRONICS)
Other Datasheets by JCET

Full PDF Text Transcription

Click to expand full text

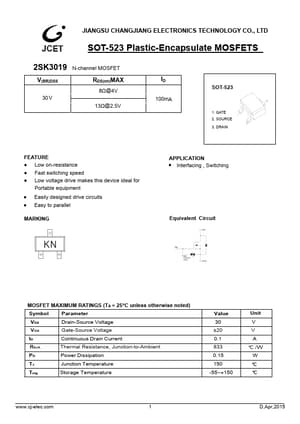

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-523 Plastic-Encapsulate MOSFETS 2SK3019 N-channel MOSFET V(BR)DSS 30 V RDS(on)MAX 8Ω@4V 13Ω@2.5V ID 100mA SOT-523 1. GATE 2. SOURCE 3. DRAIN FEATURE z Low on-resistance z Fast switching speed z Low voltage drive makes this device ideal for Portable equipment z Easily designed drive circuits z Easy to parallel MARKING APPLICATION z Interfacing , Switching Equivalent Circuit MOSFET MAXIMUM RATINGS (Ta = 25°C unless otherwise noted) Symbol Parameter VDS Drain-Source Voltage VGS Gate-Source Voltage ID Continuous Drain Current RθJA Thermal Resistance, Junction-to-Ambient PD Power Dissipation TJ Junction Temperature Tstg Storage Temperature Value 30 ±20 0.1 833 0.
