2SC2274 - NPN Transistor

Features

  • z High Breakdown Voltage z High Current z Low Saturation Voltage TO.
  • 92 1.

📥 Download Datasheet

Datasheet Details

Part number 2SC2274
Manufacturer JCET
File Size 428.31 KB
Description NPN Transistor
Datasheet download datasheet 2SC2274 Datasheet

📁 Similar Datasheet

  • 2SC2274 - Epitaxial Planar Silicon Transistor (ETC)
  • 2SC2274 - Epitaxial Planar Silicon Transistor (Sanyo)
  • 2SC2274 - NPN Plastic Encapsulated Transistor (SeCoS)
  • 2SC2274 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2274K - Epitaxial Planar Silicon Transistor (Sanyo)
  • 2SC2274K - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2270 - Silicon NPN Transistor (Toshiba)
  • 2SC2270 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC2270 - NPN Transistor (INCHANGE)
  • 2SC2271 - NPN Transistor (Sanyo Semicon Device)
Other Datasheets by JCET

Full PDF Text Transcription

Click to expand full text

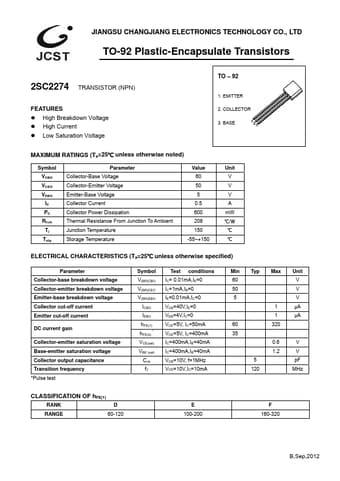

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-92 Plastic-Encapsulate Transistors 2SC2274 TRANSISTOR (NPN) FEATURES z High Breakdown Voltage z High Current z Low Saturation Voltage TO – 92 1. EMITTER 2. COLLECTOR 3. BASE MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RθJA Tj Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Junction Temperature Storage Temperature Value 60 50 5 0.
