2N7002X N-Channel MOSFET

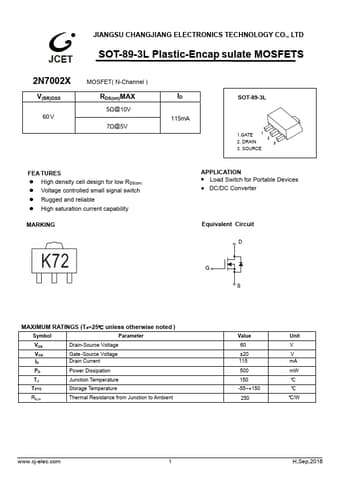

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-89-3L Plastic-Encap sulate MOSFETS 2N7002X V(BR)DSS 60 V MOSFET( N-Channel ) RDS(on)MAX 5Ω@10V 7Ω@5V ID 115mA SOT-89-3L 1.GATE 2. DRAIN 3. SOURCE FEA TURES z High density cell design for low RDS(on) z Voltage controlled small signal switch z Rugged and reliable z High saturation current capability MARKING APPLICATION z Load Switch for Portable Devices z DC/DC Converter Equivalent Circuit MAXIMUM RATINGS (Ta=25℃ unless otherwise noted .
