iT3012 - differential-to-single-ended amplifier

Name: iT3012
SKU: iT3012-620161

📥 Download Datasheet

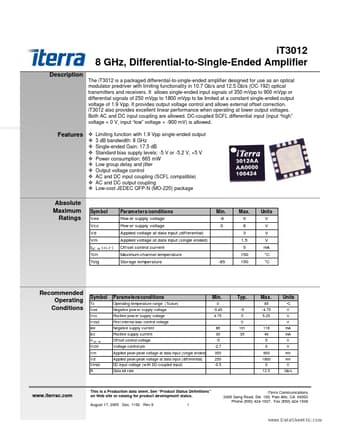

iT3012 Datasheet Preview — Preview of iT3012 PDF

Datasheet Details

Part number	iT3012
Manufacturer	Iterra
File Size	836.90 KB
Description	differential-to-single-ended amplifier
Datasheet	iT3012_Iterra.pdf

iT3012 Product details

Description

The iT3012 is a packaged differential-to-single-ended amplifier designed for use as an optical modulator predriver with limiting functionality in 10.7 Gb/s and 12.5 Gb/s (OC-192) optical transmitters and receivers.

Features

Limiting function with 1.9 Vpp single-ended output 3 dB bandwidth: 8 GHz Single-ended Gain: 17.5 dB Standard bias supply levels: -5 V or -5.2 V, +5 V Power consumption: 665 mW Low group delay and jitter Output voltage control AC and DC input coupling (SCFL compatible) AC and DC output coupling Low-cost JEDEC QFP-N (MO-220) package Absolute Maximum Ratings Sym bol Vee Vcc Vd Vm IDC IN Param eters/conditions Pow er supply voltage Pow er supply voltage Applied voltage at data.
