iT2008K - 10 MHz to 20 GHz high-power amplifier

Name: iT2008K
SKU: iT2008K-620165

📥 Download Datasheet

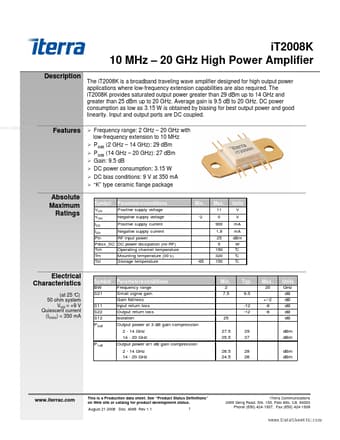

iT2008K Datasheet Preview — Preview of iT2008K PDF

Datasheet Details

Part number	iT2008K
Manufacturer	Iterra
File Size	270.98 KB
Description	10 MHz to 20 GHz high-power amplifier
Datasheet	iT2008K_Iterra.pdf

iT2008K Product details

Description

The iT2008K is a broadband traveling wave amplifier designed for high output power applications where low-frequency extension capabilities are also required. 20 GHz with low-fr

Features

Absolute Maximum Ratings Symbol VDD VGG IDD IGG Pin Pdiss_DC Tch Tm Tst Parameters/conditions Positive supply voltage Negative supply voltage Positive supply current Negative supply current RF input power DC power dissipation (no RF) Operating channel temperature Mounting temperature (30 s) Storage temperature Min. -2 Max. 11 0 900 1.8 25 5 150 320 150 Units V V mA mA dBm W ° C ° C ° C -65 Electrical Characteristics (at 25 ° C) 50 ohm system VDD = +9 V Quiescent current (IDDQ) = 350 mA.
