UF4001, UF4004 - 400V 1A silicon rectifier

The UF4001 by Invac is a 400V 1A silicon rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	UF4001, UF4004
Manufacturer	Invac
File Size	82.37 KB
Description	400V 1A silicon rectifier
Datasheet	UF4004_Invac.pdf
Note	This datasheet PDF includes multiple part numbers: UF4001, UF4004. Please refer to the document for exact specifications by model.

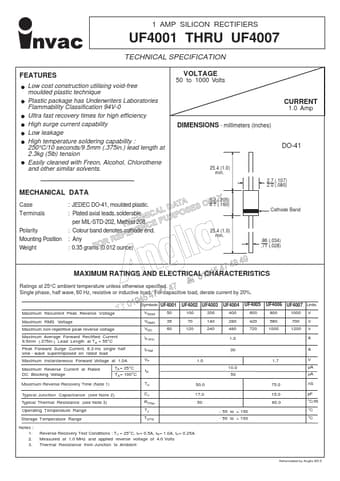

Additional preview pages of the UF4001 datasheet.

Low cost construction utilising void-free moulded plastic technique Plastic package has Underwriters Laboratories Flammability Classification 94V-0 Ultra fast recovery times for high efficiency High surge current capability Low leakage High temperature soldering capability : 250°C/10 seconds/9.5mm (.375in. ) lead length at 2.3kg (5lb) tension Easily cleaned with Freon, Alcohol, Chlorothene and other similar solvents.
