KBPC1005 - 3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER

Product Overview

📥 Download Datasheet

KBPC1005 3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER by Invac - Datasheet Preview — Datasheet preview – KBPC1005

Datasheet Details

Part number	KBPC1005
Manufacturer	Invac
File Size	55.71 KB
Description	3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	KBPC1005 Datasheet

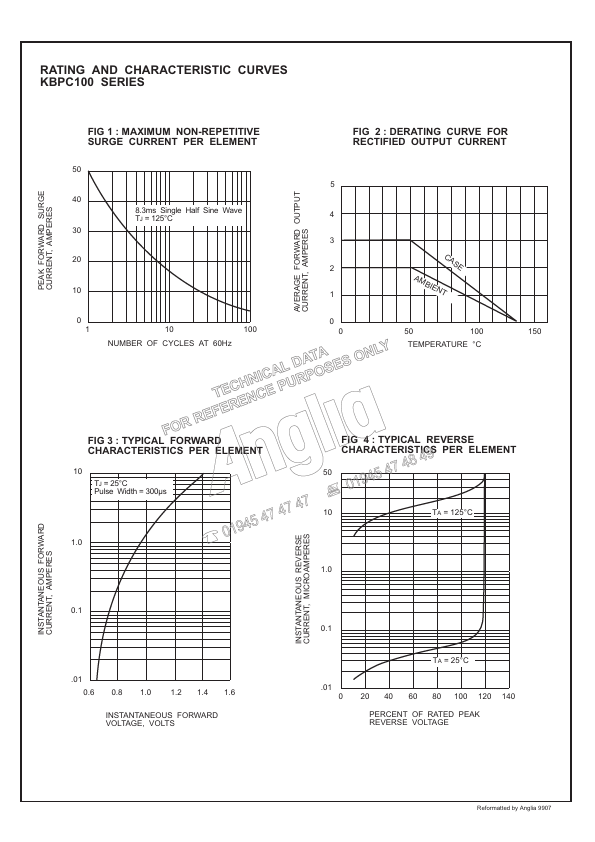

Additional preview pages of the KBPC1005 datasheet.

Product details

Features

Plastic material has Underwriters Laboratory flammability classification 94V-0. Low leakage. Surge overload rating - 50 amperes peak. Ideal for printed circuit boards. Exceeds environmental standards of MIL - STD - 19500.
