TW9912 - NTSC/PAL/SECAM Video Decoder

Description

Part # TW9912-DBNA1-GR Name QFN 48 Description Quad Flat No-Lead Package Pin Count 48 Body Size 7 x 7 mm^2 www.DataSheet.co.kr 2 Datasheet pdf - http://www.DataSheet4U.net/ Analog Video In SOG VIN 0 YIN3-0 CIN1-0 PDN SCLK Functional Description 2 Wire Serial Bus Triple 10-bit AFE PLL Line-loc

Features

  • Video decoder  NTSC (M, 4.43) and PAL (B, D, G, H, I, M, N, N combination), PAL (60), SECAM support with automatic format detection  Software selectable analog input control  VBI data pass through, raw ADC data output Programmable output cropping Analog Video Input  Triple 10-bit ADCs with independent clamping and gain control  Supports 480i/480p/576i/576p analog component input with SOG  Built-in analog anti-alias filter.  Fully programmable static gain or automatic gain control for the.

📥 Download Datasheet

📁 Similar Datasheet

  • TW9910 - Low Power NTSC/PAL/SECAM Video Decoder (Techwell)
  • TW9903 - TW9903 Multi-standard Video Decoder With High Quality Down Scaler (ETC)
  • TW9903 - Multi-standard Video Decoder (Techwell)
  • TW9906 - Enhanced 3 x 10-Bit Multi Standard Comb Filter Video Decoder (Techwell)
  • TW9920 - Analog Video Decoder / Encoder (Techwell)
  • TW9833D - Non-Isolated Buck LED Constant Current Driver IC (TIANWEI LIGHT SOURCE)
Other Datasheets by Intersil

    Full PDF Text Transcription

    Click to expand full text

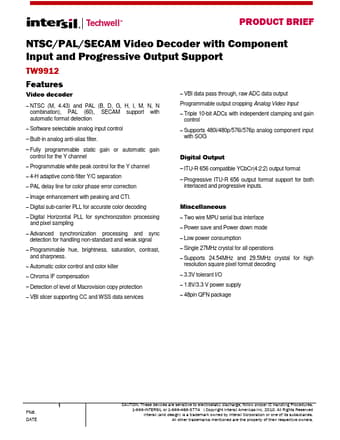

    Techwell PRODUCT BRIEF NTSC/PAL/SECAM Video Decoder with Component Input and Progressive Output Support TW9912 Features Video decoder  NTSC (M, 4.43) and PAL (B, D, G, H, I, M, N, N combination), PAL (60), SECAM support with automatic format detection  Software selectable analog input control  VBI data pass through, raw ADC data output Programmable output cropping Analog Video Input  Triple 10-bit ADCs with independent clamping and gain control  Supports 480i/480p/576i/576p analog component input with SOG  Built-in analog anti-alias filter.
