MD82C89B - CMOS Bus Arbiter

Product Overview

Intersil

📥 Download Datasheet

MD82C89B CMOS Bus Arbiter by Intersil - Datasheet Preview — Datasheet preview – MD82C89B

Datasheet Details

Part number	MD82C89B
Manufacturer	Intersil
File Size	123.48 KB
Description	CMOS Bus Arbiter
Datasheet	MD82C89B Datasheet

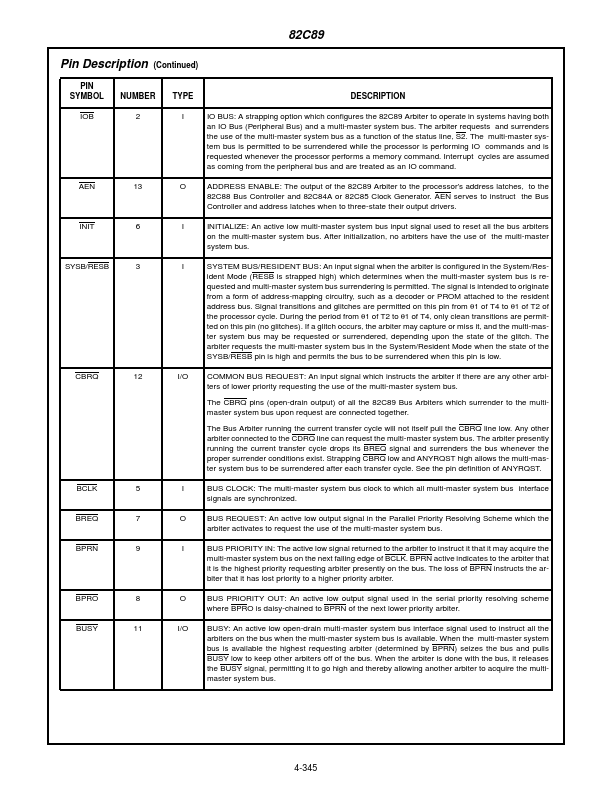

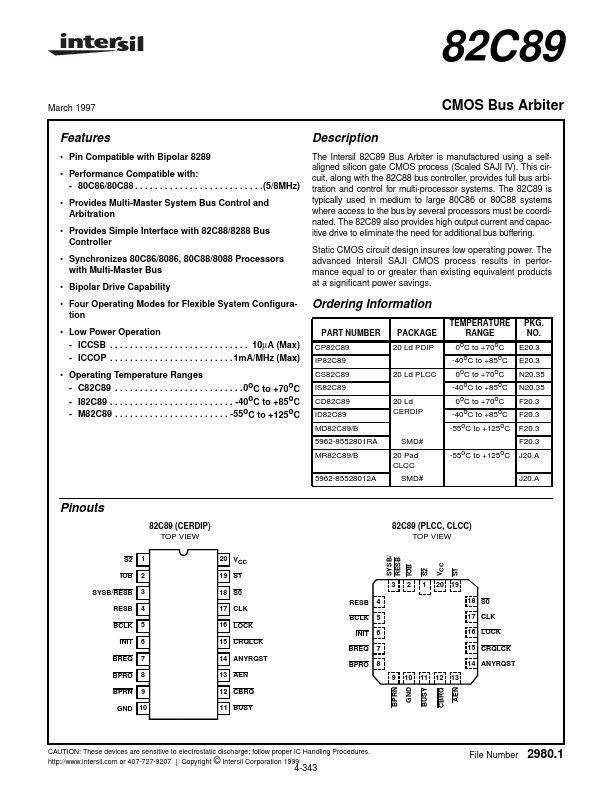

Additional preview pages of the MD82C89B datasheet.

Product details

Description

The Intersil 82C89 Bus Arbiter is manufactured using a selfaligned silicon gate CMOS process (Scaled SAJI IV).

Features

Pin Compatible with Bipolar 8289.
Performance Compatible with: - 80C86/80C88.
. (5/8MHz).
Provides Multi-Master System Bus Control and Arbitration.
Provides Simple Interface with 82C88/8288 Bus Controller.
Synchronizes 80C86/8086, 80C88/8088 Processors with Multi-Master Bus.
Bipolar Drive Capability.
Four Operating Modes for Flexible System Conﬁguration.
Low Power Operation - ICCSB.
