ISL71091SEH33 - 3.3V Radiation Hardened Ultra Low Noise / Precision Voltage Reference

Description

3.

.

Features

  • Reference output voltage: 3.3V ±0.05%.
  • Accuracy over temperature: ±0.15%.
  • Accuracy over radiation: ±0.25%.
  • Output voltage noise: 5.2µVP-P typical (0.1Hz to 10Hz).
  • Supply current: 300µA (typical).
  • VOS temperature coefficient: 6ppm/°C maximum.
  • Output current capability: 10mA/-5mA.
  • Line regulation: 5ppm/V maximum.
  • Load regulation (sourcing): 25ppm/mA maximum.
  • Operating temperature range: -55°C to +125°C.
  • Radiation acceptance testing (see TID r.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ISL71090SEHF25 Radiation Hardened Ultra Low Noise / Precision Voltage Reference Intersil Corporation
ISL7119RH Radiation Hardened High Speed Dual Voltage Comparator Intersil Corporation
ISL7124SRH Quad Operational Amplifiers Intersil Corporation
ISL70001SRH Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator Intersil Corporation
ISL72026SEH 3.3V Radiation Tolerant CAN Transceiver Intersil Corporation

Other Datasheets by Intersil (Renesas)

Part Number Description
ISL71091SEH10 10V Radiation Hardened Ultra Low Noise / Precision Voltage Reference
ISL71091SEH20 2.048V Radiation Hardened Ultra Low Noise / Precision Voltage Reference
ISL71091SEH40 4.096V Radiation Hardened Ultra Low Noise / Precision Voltage Reference
ISL71090SEH12 Radiation Hardened Ultra Low Noise / Precision Voltage Reference
ISL71090SEH25 2.5V Radiation Hardened Ultra Low Noise / Precision Voltage Reference

Full PDF Text Transcription

Click to expand full text

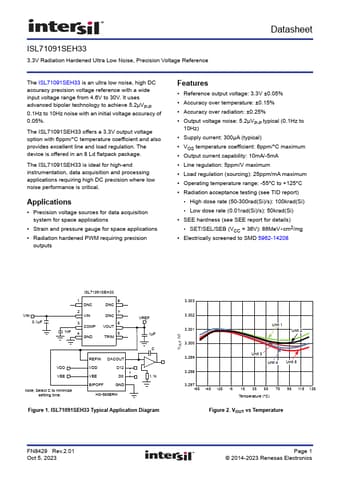

ISL71091SEH33 3.3V Radiation Hardened Ultra Low Noise, Precision Voltage Reference Datasheet The ISL71091SEH33 is an ultra low noise, high DC accuracy precision voltage reference with a wide input voltage range from 4.6V to 30V. It uses advanced bipolar technology to achieve 5.2µVP-P 0.1Hz to 10Hz noise with an initial voltage accuracy of 0.05%. The ISL71091SEH33 offers a 3.3V output voltage option with 6ppm/°C temperature coefficient and also provides excellent line and load regulation. The device is offered in an 8 Ld flatpack package. The ISL71091SEH33 is ideal for high-end instrumentation, data acquisition and processing applications requiring high DC precision where low noise performance is critical.
